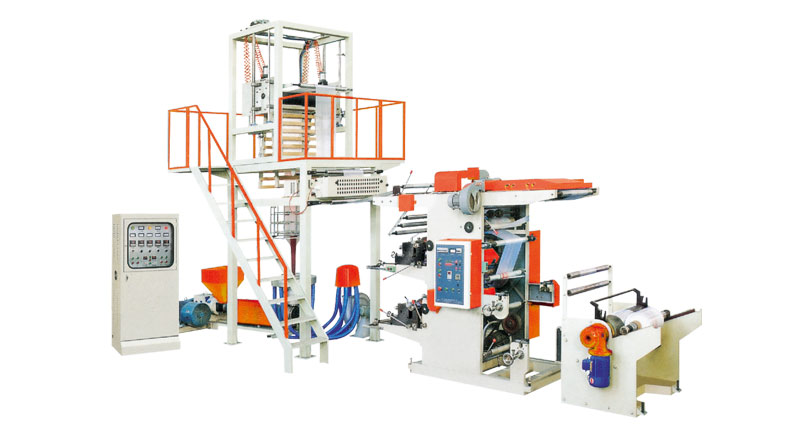

The fuselage of the unit is a square steel frame, and the traction motor iswith frequency conversion. Friction single winding, Lift etc. Suitable forblowing high and bw pressure polyethylene industrial films and agriculturalmulching films. even Continuous printing of various plastic films. Cloth andthin leather, packaging products. single-sidedPrinting is done in one go.360-degree plate registration device, accurate and does not affect the pullingof the filmlong. The printing color can be adjusted arbitrarily at any time. Noinfrared tube drying device,It can dry 50%/min, and the image is clear andbeautiful. (The gravure printing machine can also be replaced with flexosexpress)

Model	HN-P45	HN-P50	HN-P55	HN-P65
Screw diameter	¢45mm	¢50mm	¢55mm	¢65mm
Diameter of film	100-500mm	300-600mm	400-800mm	600-1200mm
Film thickness sided	0.009-0.05mm	0.009-0.05mm	0.009-0.15mm	0.009-0.15mm
The maximum amount out	35Kg/h	40Kg/h	50Kg/h	55Kg/h
Aspect ratio	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1
Host power	11Kw	15Kw	18.5Kw	22Kw
Barrel temperature control	3	3	3	4
Average power consumption	10Kw	12Kw	18Kw	30Kw
Dimensions	5000x2000x4200mm	5000x2100x4500mm	5500x2300x4500mm	5800x2600x5000mm
power supply	3.8V,50Hz,3Phase	3.8V,50Hz,3Phase	3.8V,50Hz,3Phase	3.8V,50Hz,3Phase
