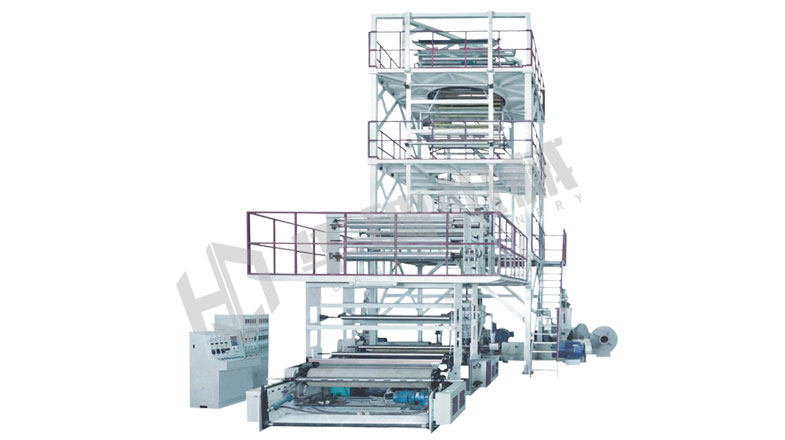

Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufactuer composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.

The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die structure. It solves problems of leakage, poor, sealing, and maintenance and improves the quality of film.The IBC internal bubble cooling system improves film quality and transparency, finally increases the output.High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.EPS photoelectron correct errors system can correct automatically, which ensures the roll film evenly.High accurate mould and effective air cooling system ensure high quality film and output.

Model	3SJG-50	3SJG-55	3SJG-65
Suitable material		HDPE LDPE LLDPE
Film Width	800-1200mm	1000-1500mm	1200-2000mm
Film Thickness	0.028-0.20mm	0.028-0.20mm	0.03-0.20mm
Max. Extrusion Output	120kg/hr	150kg/hr	200kg/hr
Extruder
Screw Diameter	φ50×3	Aφ55 Bφ60 Cφ55	Aφ60 Bφ65 Cφ60
Screw L/D Length		28:1
Screw Material		Sacm-645/38 Crmoala
Barrel Material		Sacm-645/38 Crmoala
Barrel Cooling	370w×2/3	370w×2/3	550w×3/3
Driving Motor Power	15kw×3	A18.5+B22+C18.5	A22+B30+C22
Temperature Control	3×3	3×3	3×3
Average Power-consume	80kw	95kw	120kw
Die Size	280mm	350mm	500mm
Temperature Control		4
Air Ring		1
Air Blower	7.5kw	11kw	15kw
Take-up unit
Roller Width	1600mm	2100mm	2600mm
Take-up Speed	5-50m/min	5-50m/min	5-50m/min
Take-up Motor	1.5kw	2.2kw	2.2kw
Winding Unit
Type		Surface friction type
Winding Motor	1.5kw	2.2kw	2.2kw
Winding Speed	5-50m/min	5-50m/min	5-50m/min
Overall Dimension(L×W×H)	9.5×4.5×7.5(m)	10.5×5.0×9(m)	11.5×5.5×10(m)
